Structure in Chemistry
Molecular Orbital Theory
MO20. Solutions to Selected Problems
Contributed by Dr. Nicholas Jones, Dr. Brian Johnson and Dr Kate Graham, CSB/SJU
ProblemMO2.1.
When two s orbitals combine out-of-phase, destructive intereference occurs.
There is a node between the atoms.
The energy of the electrons increases.
When two s orbitals combine in-phase, constructive interference occurs.
There is no node between the atoms; the electrons are found between the atoms.
The energy of the electrons decreases.
Problem MO2a.1.
a) We can ignore the height of the waves. The wavelength is the distance from one peak to the next. The longer the wavelength, the lower the energy. Here, ii has a longer wavelenth than i, so i has greater energy than ii.
b) Wave ii has greater energy than i.
c) Wave ii has greater energy than i.
d) Wave i has greater energy than ii.

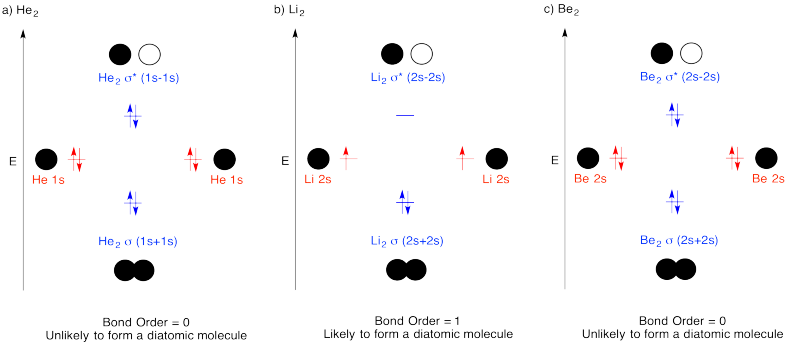

Problem MO3.1.

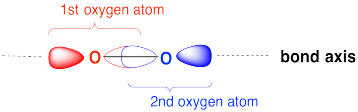

Problem MO4.1.
Problem MO4.2.

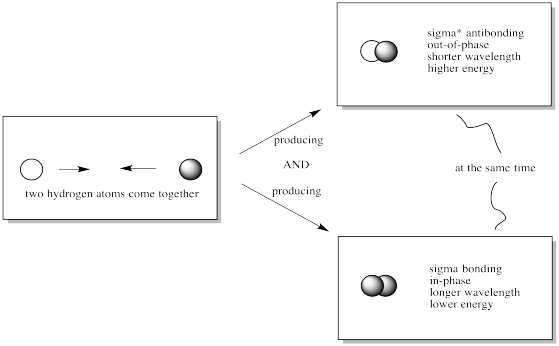

Problem MO5.1.
When 2 atomic orbitals are combined, 2 molecular orbitals are formed: one in-phase bonding orbital and one out-of-phase antibonding orbital.
Problem MO5.2.
In-phase combinations of atomic orbitals give bonding orbitals.
Problem MO5.3.
Out-of-phase combinations of atomic orbitals give antibonding orbitals.

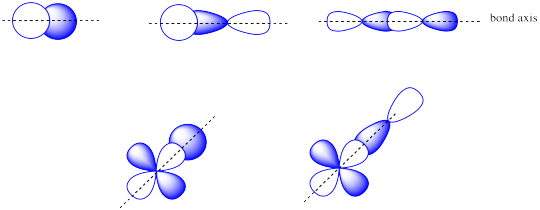

Problem MO5.4.
The combinations of s + s OR s + p OR p + p OR s + d OR p + d atomic orbitals can lead to σ orbitals.
Problem MO5.5.
The combinations of side by side p + p or p + d atomic orbitals leads to π orbitals.
Problem MO5.6.
In general, atomic orbitals are above molecular bonding orbitals in energy but below molecular antibonding orbitals in energy. Also, sigma bonding orbitals are below pi bonding orbitals in energy because of greter overlap. Conversely, sigma antibonding orbitals are above pi antibonding orbitals; there is generally preservation of the average energy of orbitals, so that antibonding orbitals are raised in energy by a similar amount that bonding orbitals drop.
The order from highest to lowest is then:
σ*
π*
p
π
σ
Than means the highest is (e) σ*.
Problem MO5.7.
Li+ and O2- are more similar in size than K+
and O2-, so the bond between Li+ and O2- is
stronger.
The energy difference between the 1s orbitals and 2s orbitals
is too large, so they cannot interact. In order for orbitals to interact, the
orbitals need to have the same symmetry, be in the same plane, and be similar in
energy.
Problem MO5.8.
When two parallel p orbitals combine out-of-phase, destructive intereference occurs.
There is a node between the atoms.
The energy of the electrons increases.
When two parallel p orbitals combine in-phase, constructive interference occurs.
There is no node between the atoms; the electrons are found above and below the axis connecting the atoms.
The energy of the electrons decreases.
Problem MO6.1.
Problem MO6.2.
� Count the valence electrons on the molecule. That's the number of
valence electrons on each atom, adjusted for any charge on the molecule.
(eg C22- has 10 valence electrons: 4 from each carbon --
that's 8 -- and two more for the 2- charge).
� Fill electrons into the lowest
energy orbitals first.
� Pair electrons after all orbitals at the same energy
level have one electron.

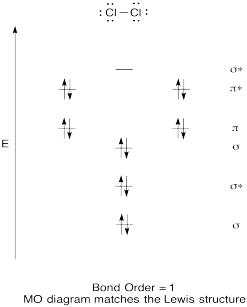

Problem MO6.3.

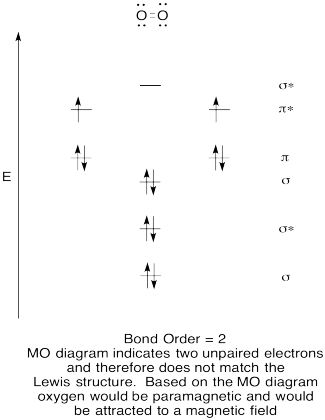

Problem MO6.4.

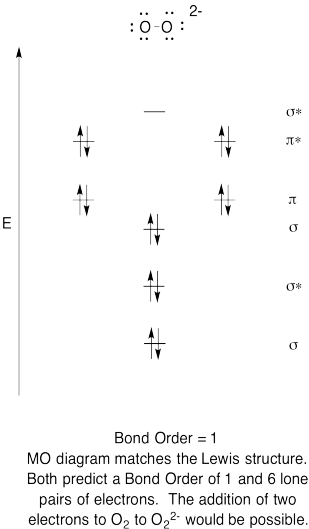

Problem MO6.5.

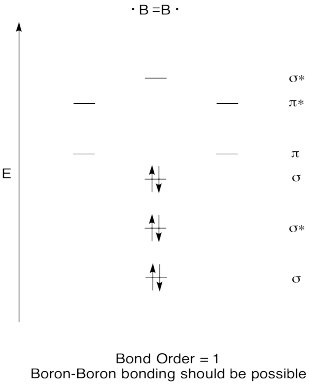

Problem MO6.6.

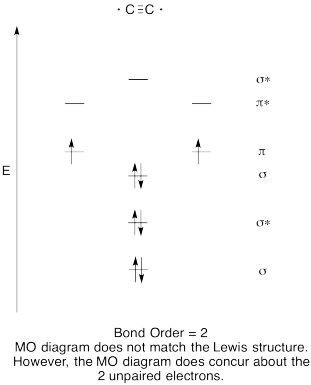

Problem MO6.7.

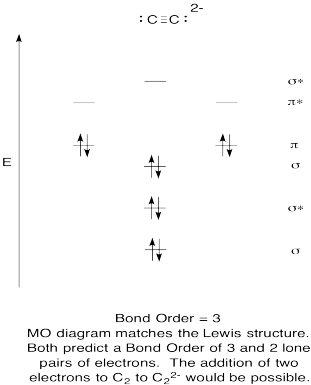

Problem MO6.8.
Problem MO6.9.
Problem MO6.10
a) Na, because Na has a lower ionization potential (and a lower electronegativity) than Al.
b) Al
c) 4-, because there are four Na+
d) total e- = 2 x 3 e- (per Al) + 4 e- (for the negative charge) = 10 e-
e)
f)
g) bond order = (# bonding e- - # antibonding e-) / 2 = (8-2)/2 = 3
Problem MO7.1
From MO6: 3. Diamagnetic (no
unpaired electrons); 4. Paramagnetic; 5. Diamagnetic; 6. Diamagnetic; 7.
Paramagnetic; 8. Diamagnetic
Problem MO7.2
a. N2+.
From the MO diagrams, N2+ has one less bonding electron.
Thus, the bond order will be lower and the bond will be longer than in N2.
b. N2-. From the MO diagrams, N2-
has one more antibonding electron. Thus the bond order will be lower and the
bond will be longer than N2.
Problem MO7.3
a. O2+
. From the MO diagram, O2+ has one less antibonding
electron. Thus the bond order will be higher and the bond will be stronger than
in O2.
b. O2. From the MO diagram, O2 has
one less antibonding electron. Thus the bond order will be higher and the bond
will be stronger than in O2-.
Problem MO9.1.
a)
b)
c)

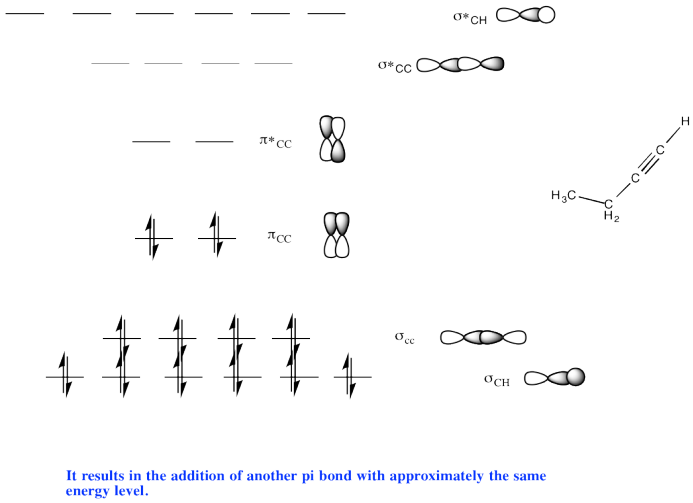

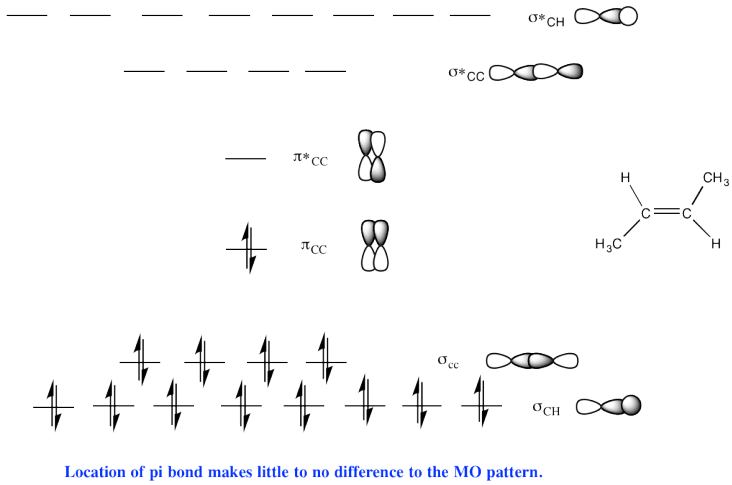

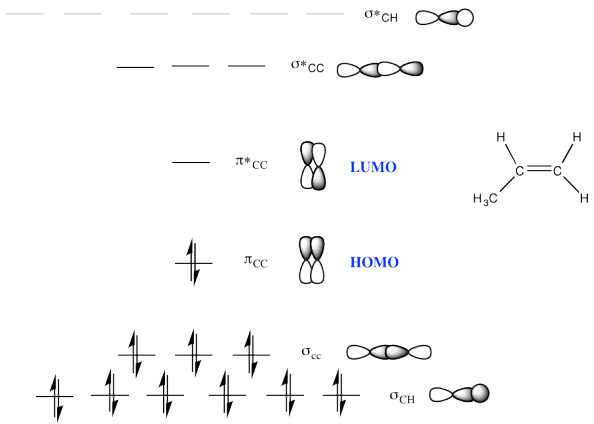

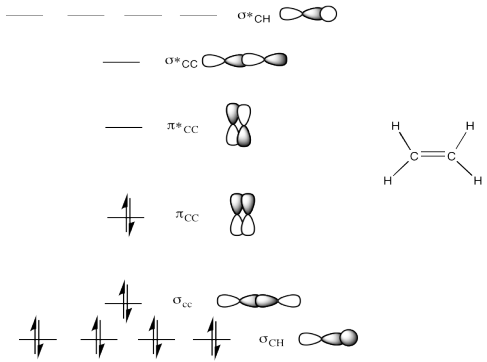

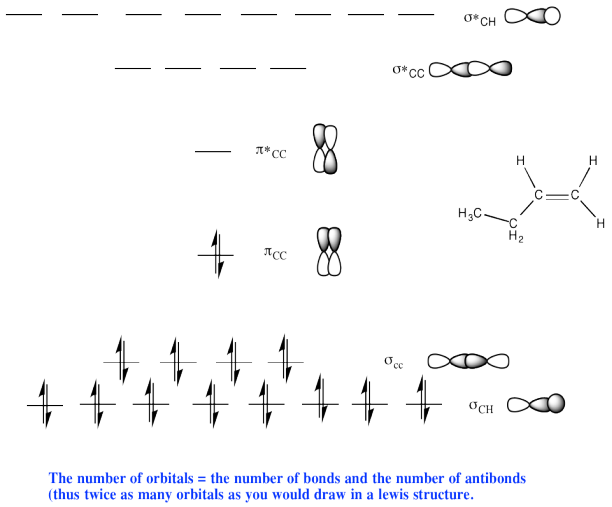

Problem MO11.1.
a)
b)
c)

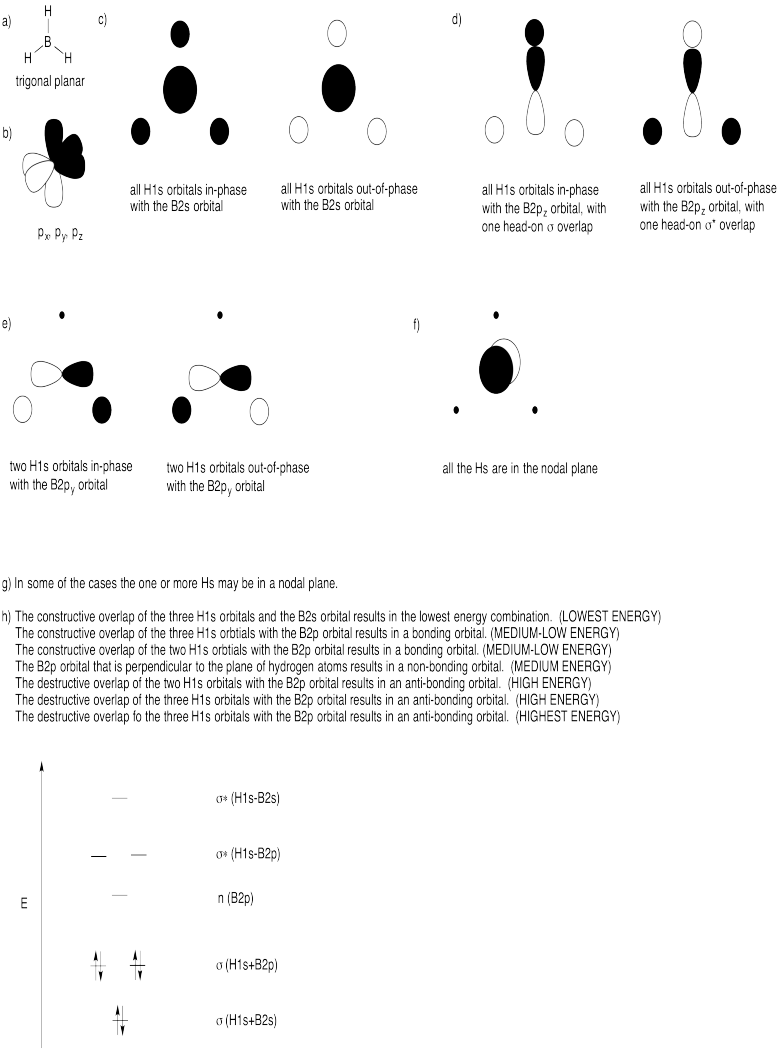

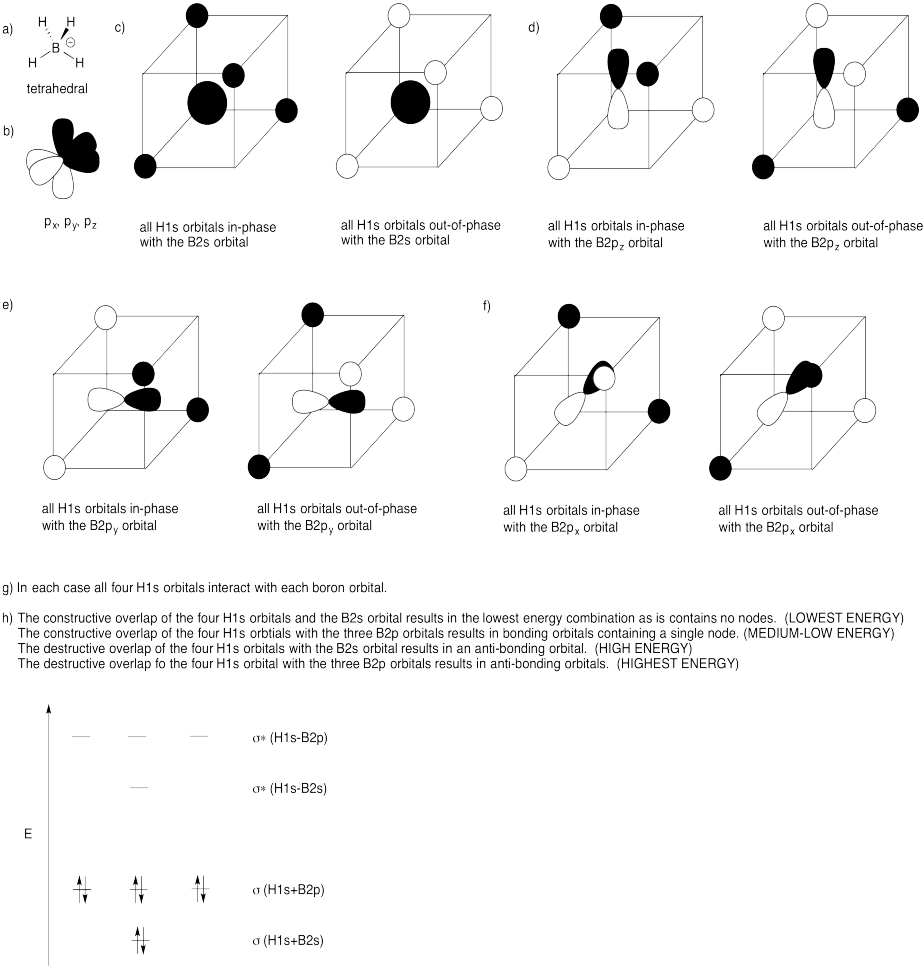

Problem MO11.2.
a)
b)
c)
d)
e)
Problem MO11.3.
Problem MO11.4.

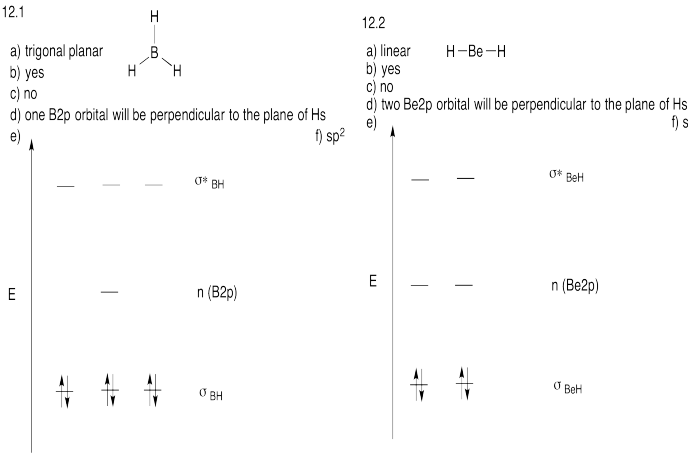

Problem MO12.1. & 12.2.

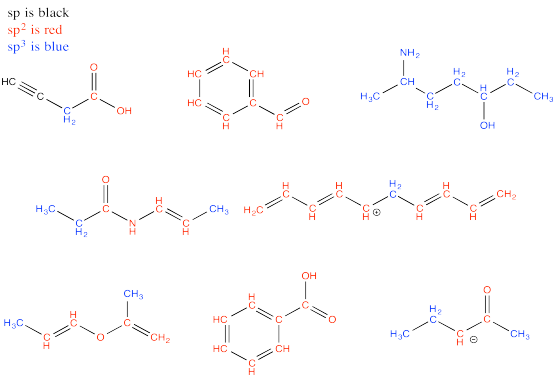

Problem MO12.3.

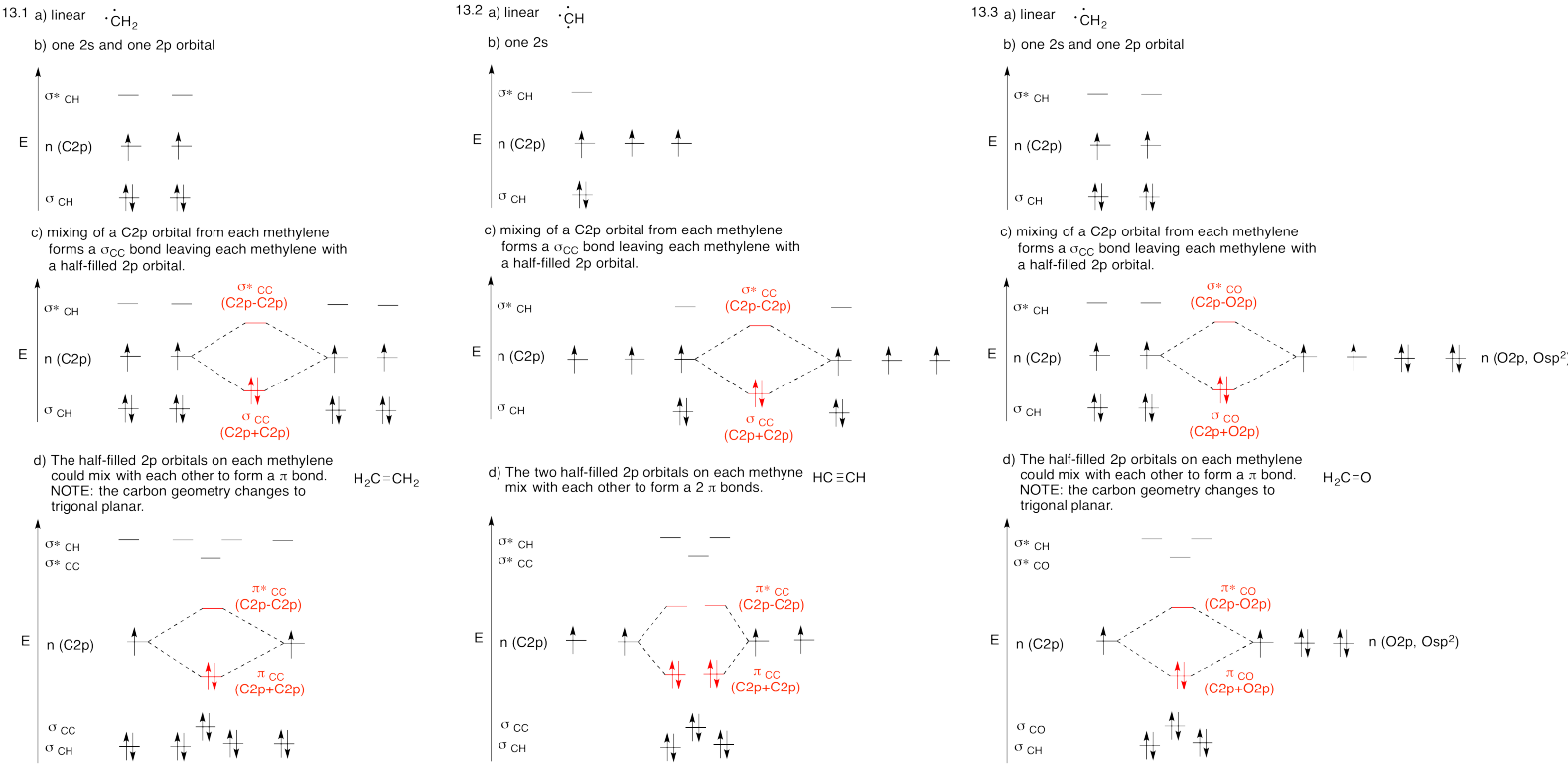

Problem MO13.1.-13.3.

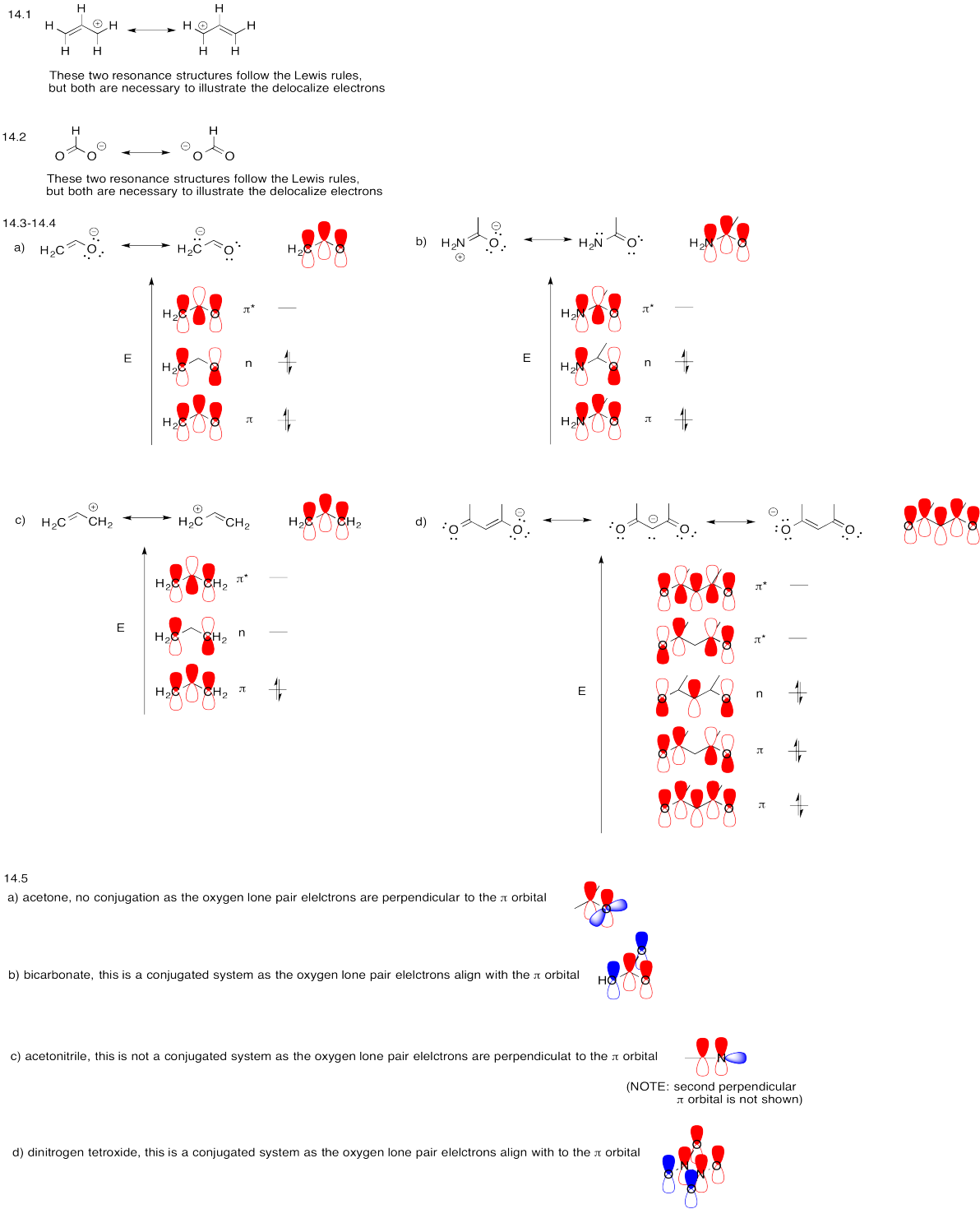

Problem MO14.1.-14.5.

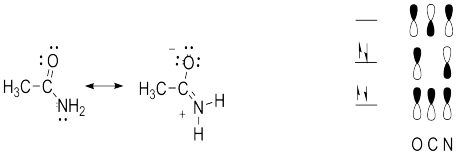

Problem MO14.6.
All of the answers depend on an understanding of the contributions of two
resonance structures to the overall picture of acetaminde, or alternatively,
that actetamide forms a conjugated pi system with four electrons delocalized
over the O, C and N.
a. Contribution of the second resonance structure introduces some double
bond character to the C-N bond and some single bond character to the C-O bond.
Thus, both of these bonds are intermediate in length between single and double
bonds.
b. Since the C, N and O atoms are sp2 hybridized, the C-N pi bond can
only form if the remaining p orbitals on these atoms align. This places the
atoms participating in the sp2 sigma bonds in the same plane.
c. Because of
the partial double bond character there is a larger barrier to rotation than is
typically found in molecules with only single bonds.
d. Because of the
partial double bond character and the restricted rotation, the two H�s are not
identical. (One is nearer the O and one is nearer the CH3 and the restricted
rotation prevents their interconversion.

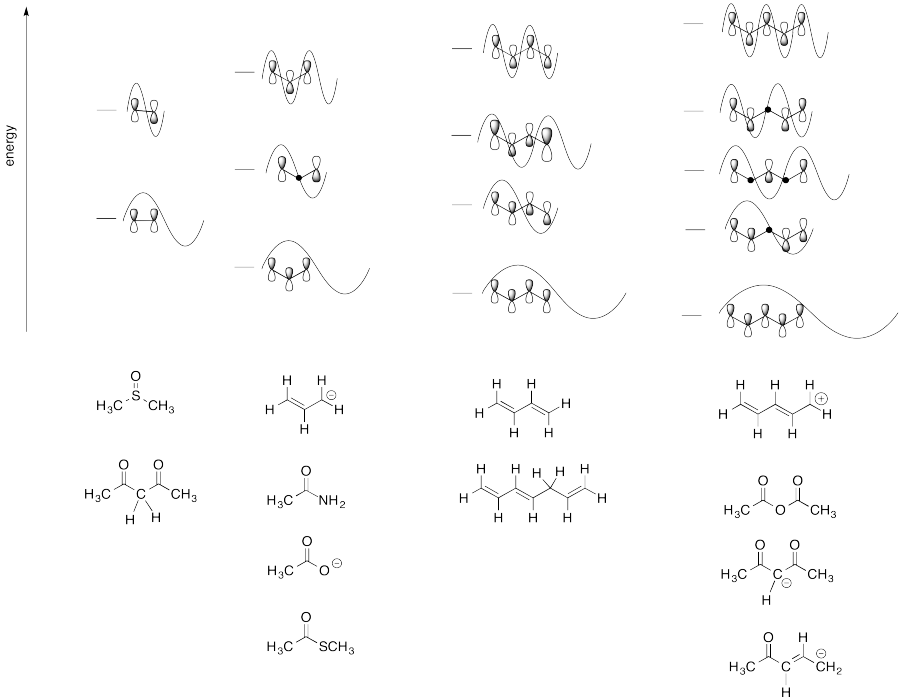

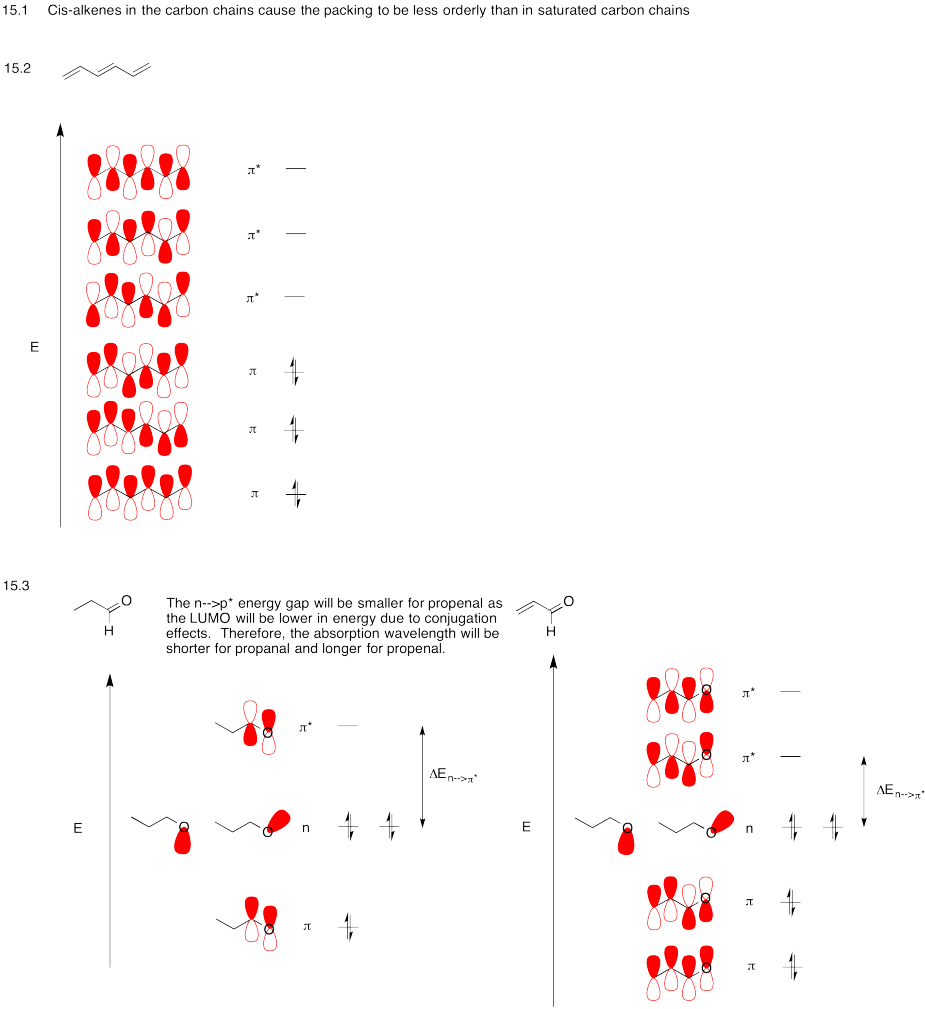

Problem MO15.1.-15.3.
Problem MO15.4.
Problem 16.1.
Because the two resonance structures shows double bonds in two different places, the implication is that all of the bonds in benzene have some double bond and some single bond character. You can think of them all as being about 1.5 bonds.
Problem 16.2.
a) non-aromatic b) non-aromatic c) aromatic d) aromatic e) anti-aromatic f) anti-aromatic
Problem 16.3.
a) aromatic b) non-aromatic c) anti-aromatic d) aromatic
Problem 16.4.
a) aromatic b) anti-aromatic c) aromatic d) anti-aromatic
Problem 16.5.
Problem MO16.6.
Problem MO16.7.
In tropone, the resonance structure on the right shows more aromatic character, because it clearly shows a fully-conjugated ring with an odd number of electron pairs in the pi system. The carbonyl in the picture on the left makes that conjugation less obvious: does its carbonyl pi bond contribute to the conjugated system of the ring? If it does, that would mean four pairs of electrons in the pi system, and that would be an even number, so it would be anti-aromatic.
The hydroxy group in hydroxytropolone would stabilize the compound in the structure shown on the right, via an ion-dipole interaction with the anionic oxygen. That makes the right-hand, explicitly aromatic structure the dominant one.

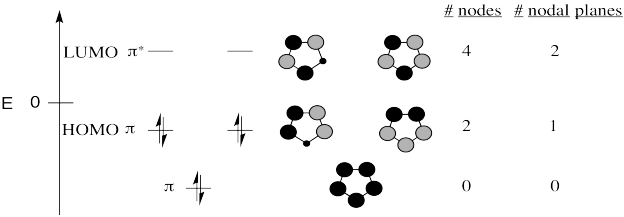

Problem MO17.1.
All of the compounds are aromatic and have the same H�ckel MO diagram.

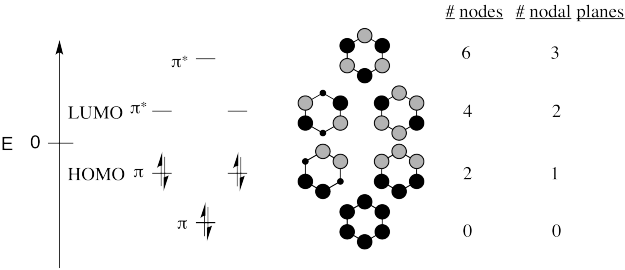

Problem MO17.2.
All of the compounds are aromatic and have the same H�ckel MO diagram.
