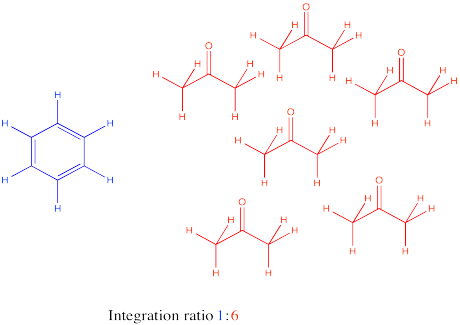

Remember that integration ratios are really only meaningful within a single compound. If your NMR sample contains some benzene (C₆H₆) and some acetone (CH₃COCH₃), and there is a peak at 7.15 that integrates to 1 proton and a peak at 2.10 ppm integrating to 6 protons, it might mean there are 6 protons in acetone and 1 in benzene, but you can tell that isn't true by looking at the structure.

There are six protons in the benzene, and they should all show up near 7 ppm.  There are six protons in acetone, and they should all show up near 2 ppm.  If there were 1 molecule of benzene for every molecule of acetone, then the integrations would be equal.

Assuming that small integral of 1H for the benzene is really supposed to be 6H, then the large integral of 6H for the acetone must also represent six times as many hydrogens, too.  It would be 36 H.  There are only six hydrogens in acetone, so it must represent six times as many acetone molecules as there are benzenes.

In general, to calculate that ratio, we have to take the integral we see and correct for the number of hydrogens it is supposed to represent.  If there are six hydrogens per molecule, and we divide the integral by six, then the result represents the relative amount of that molecule in the sample.

For benzene:  at 7.15 ppm, integral = 1H

But 1H / 6H per molecule = 0.17 molecules

For acetone: at 2.10 ppm, integral = 6H

But 6H / 6H per molecule = 1 molecule

The ratio of acetone to benzene = 1 molecule acetone : 0.17 molecules benzene = 6 acetone : 1 benzene

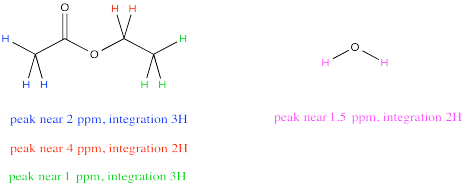

Sometimes a compound will have several peaks in an NMR spectrum because it has several unique hydrogens.  For example, ethyl acetate has a few different peaks.  What if you wanted to compare the amount of acetone to the amount of water?

It might be tempting to just measure up all the integrals for the hydrogens in ethyl acetate and all the integrals for the hydrogens in water.  Comparing those two numbers would tell you the ratio of ethyl acetate to water, right?  Not exactly.   Ethyl acetate has a lot more protons than water, so that isn't a fair comparison.  Even in a 1:1 misture of water to ethyl acetate, the total integral for ethyl acetate should be much bigger than for water.

However, notice that peak near 4 ppm in ethyl acetate.  It represents 2H, just like the peak for water.  Comparing the integral for the peak at 4 to the integral for the peak at 1.5 would provide a pretty good ratio of ethyl acetate to water.  The reason we choose the integral at 4 ppm is because it isn't close to any other peaks, so we are very confident that this integral represents only ethyl acetate and nothing else.

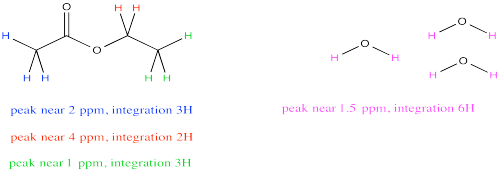

Because both peaks represent the same number of hydrogens, the integrals give a direct ratio of the number of molecules present.  So, suppose the spectrum reports a raw integral of 27 for the peak at 1.5 ppm and 9 for the peak at 4 ppm.  Remember, the integral is just reporting the relative area under the peak, rather than some absolute quantity, so the initial numbers we get might not sound like they correspond to a reasonable number of hydrogens.  It's the ratio that matters, and the ratio of 27:9 is 3.  If the integral at 1.5 ppm is three times bigger than the one at 4 ppm, there must be three times as many water molecules as ethyl acetate molecules.

For water:  at 1.5 ppm, integral = 27H

But 27H / 2H per molecule = 13.5 molecules

For ethyl acetate: at 4.2 ppm, integral = 9H

But 9H / 2H per molecule = 4.5 molecule

The ratio of water to ethyl acetate = 13.5 molecule water : 4.5 molecules ethyl acetate = 3 water : 1 ethyl acetate

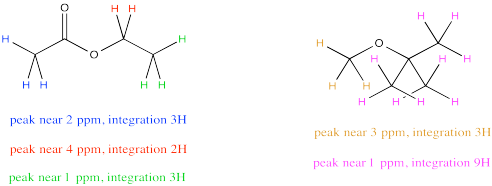

Sometimes there are several unique hydrogens in both compounds that you want to compare, so you will need to make a choice about which peaks to compare.  For example, maybe you need to determine the ratio of ethyl acetate to TBME (^tert-butyl methyl ether, sometimes alternatively called MTBE) in a sample.

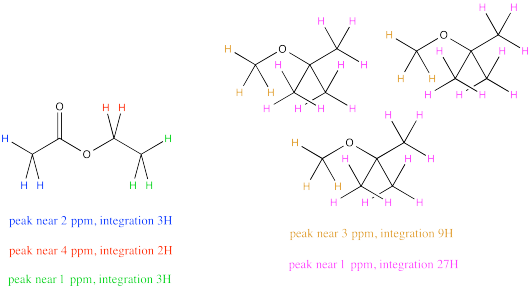

The easiest thing to do may be to compare the peak at 2 ppm in ethyl acetate with the peak at 3 ppm in TBME.  They are both supposed to be 3H, so a comparison of those two integrals gives you a direct look at the ratio of molecules.  For example, a 1:3 ratio between the peak at 2 ppm and the peak at 3 ppm would indicate a 1:3 ratio of molecules.

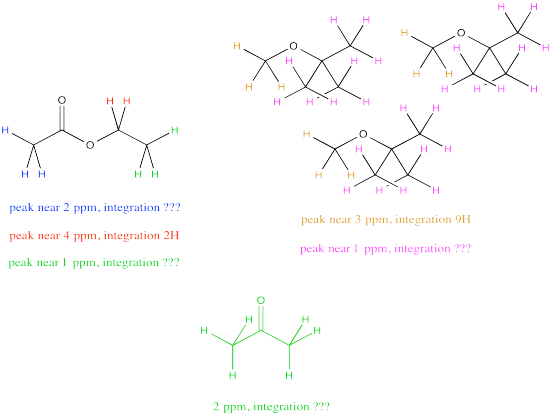

But what if, right before you made your NMR sample, you noticed a little schmutz on the NMR tube and decided to clean it with some acetone.  As a result, you're pretty sure there is some acetone in your NMR sample.  Unfortunately, that also shows up at 2 ppm, so you're not quite sure what part of the integral at 2 ppm is telling you about the acetone and what part is telling you about the ethyl acetate.

Don't worry.  You can still resort to comparing the peak at 4 ppm in ethyl acetate, which you can see very clearly, with the peak at 3 ppm in TBME, also in the clear.  The only trouble is that you have to take into account that one peak represents 2H per molecule and the other peak represents 3H per molecule.  You need to adjust for that by, for example, multiplying the integral at 3 ppm by 2/3.  You're cutting it down so you can compare it to a peak that would only represent 2H rather than 3H.  You are putting it on an equal footing with the peak from the ethyl acetate, so that you can compare the number of molecules present, not just the number of H in each molecule.

Suppose this students measures those two raw integrals at 4 ppm and 3 ppm, and gets values of 127H and 38H.

For ethyl acetate:  at 4.2 ppm, integral = 127H

But 127H / 2H per molecule = 63.5 molecules

For TBME: at 3.10 ppm, integral = 38H

But 38H / 3H per molecule = 12.67 molecule

The ratio of ethyl acetate to TBME = 63.5 molecule ethyl acetate : 12.67 molecules TBME = 5 ethyl acetate : 1 TBME

Sometimes, you may be asked to express the make-up of the sample in terms of percent composition rather than as a ratio.  Converting ratios to percentages involves dividing one part of the ratio by the sum of both parts.

% ethyl acetate = [5 /(5 + 1) ] x 100% = 83.3% ethyl acetate

% TBME = [1/(5+1)] x 100% = 16.7% TBME

or %TBME = 100 - 83.3% = 16.7%

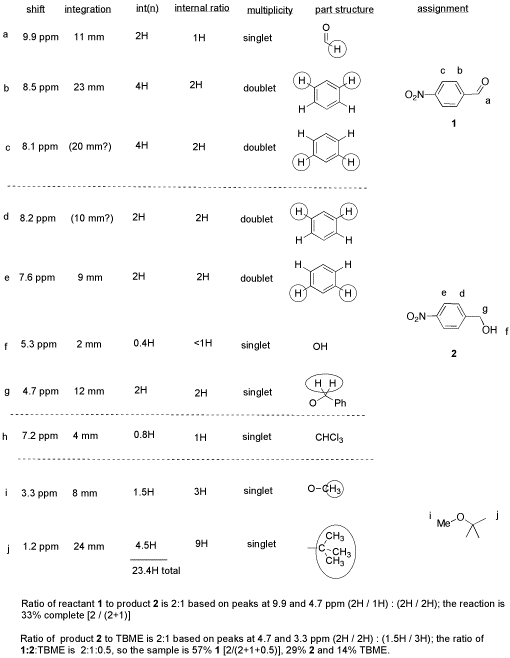

If you have decided that you can identify two sets of peaks in the 1H spectrum, analysing them in different tables makes it easy to keep the integration analysis completely separate too ; 1 H in one table will not be the same size integral as 1 H in the other table unless the concentrations of the two compounds in the sample are the same.

Notice how she calculated that ratio.  She found a peak in molecule 1, the aldehyde, that she was pretty sure corresponded to the aldehydic hydrogen, the H attached to the C=O; in other words, the CH=O.  She found another peak from molecule 2, the alcohol, that she was pretty sure represented the two hydrogens on the carbon attached to oxygen, the CH₂-O.

The integrals for those two peaks are equal.  They are both 2H in her table.  However, she notes that within each molecule, the first integral really represents 1H and the second represents 2H.  That means there must be twice as many of molecule 1 as there are molecule 2.  That way, there would be 2 x CH=O, and its integral would be the same as the 1 x CH₂-O in the other molecule.

One way to approach this kind of problem is to:

•  choose one peak from each of the two compounds you want to compare.

• decide how many hydrogens each peak is supposed to represent in a molecule.  Is it supposed to be a CH2, a CH, a CH3?

• divide the integral value for that peak by that number of hydrogens it is supposed to represent in a molecule.

• compare the two answers  (integral A / ideal # H) vs (integral B / ideal # H).

• the ratio of those two answers is the ratio of the two molecules in the sample.

So there is twice as much aldehyde as alcohol in the mixture.  In terms of these two compounds alone, she has 33% alcohol and 66% aldehyde.  That's ( 1/(1+2) ) x100% for the alcohol, and ( 2/(1+2) ) x100% for the aldehyde.  That calculation just represents the amount of individual component divided by the total of the components she wants to compare.

• Her reaction really didn't work very well.  She still has majority starting material, not product.

• She will get a good grade on this lab.  Although the experiment didn't work well, she has good data, and she has analyzed it very clearly.

• She has separated her data table into different sections for different compounds.  Sometimes that makes it easier to analyze things.

• She has noted the actual integral data (she may have measured the integral with a ruler) and also converted it into a more convenient ratio, based on the integral for a peak that she felt certain about.

• She went one step further, and indicated the internal integration ratio within each individual compound.

• She calculated the % completion of the reaction using the integral data for the reactant and product, and she made clear what part of the data she used for that calculation.  A similar procedure could be done if a student were just trying to separate two components in a mixture rather than carry out a reaction.

• She also calculated the overall purity of the mixture, including a solvent impurity that she failed to remove.

• However, CHCl₃ is not included in her analysis of purity.  CHCl₃ really isn't part of her sample; it was just present in the NMR solvent, so it doesn't represent anything in the material she ended up with at the end of lab.

Another student carried out a similar reaction, shown below.  He also finished the reaction by washing with water, but because methanol is soluble in water, he had to extract his product out of the water.  He chose to use dichloromethane for that purpose.

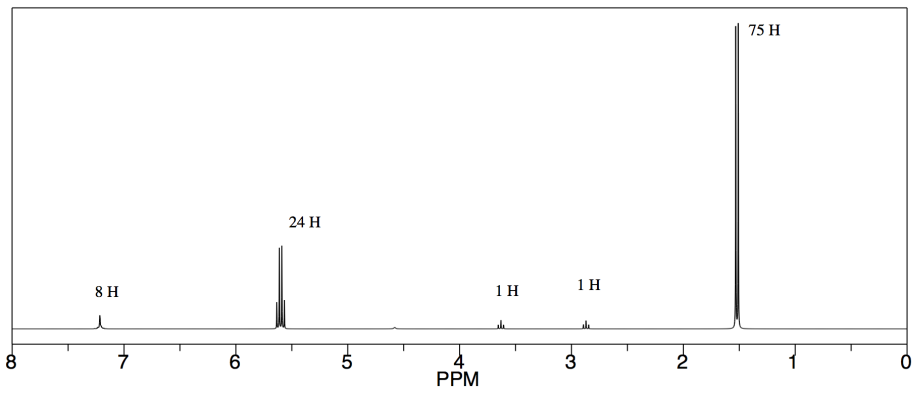

He obtained the following data.

From this data, he constructed the following table.

There are some things to learn about this table, too.

• Does the integration ratio really match the integral data?  Or is this just wishful thinking?

• This table might reflect what he wants to see in the data.  But what else could be in the data?

• CHCl₃ is often seen in NMR spectra if CDCl₃ is used for the NMR sample. It's there, at 7.2 ppm.

• "Leftover" or residual solvent is very common in real lab data.  There it is, CH₂Cl₂ from the extraction, at 5.4 ppm.

• What about water?  Sometimes people don't dry their solutions properly before evaporating the solvent.  There is probably water around 1.5 to 1.6 ppm here.

This student might not get a very good grade; the sample does not even show up in the spectrum, so he lost it somewhere.  But his analysis is also poor, so he will really get a terrible grade.

Problem NMR15.1.

 Three students performed a synthesis of a fragrant ester, ethyl propanoate, CH₃CH₂CO₂CH₂CH₃.  During their reactions, they each used a different solvent.  The students were able to see peaks in the NMR spectrum for ethyl propanoate, as well as peaks for chloroform (CHCl₃, in the CDCl₃ they used to make their NMR samples).

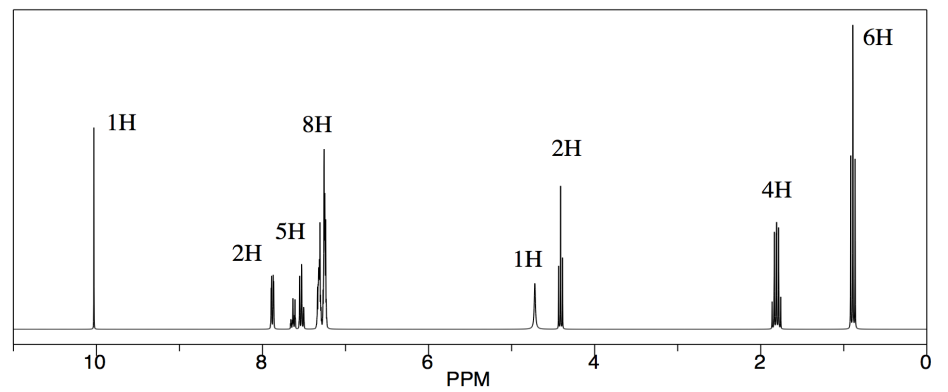

See the first student's spectrum.

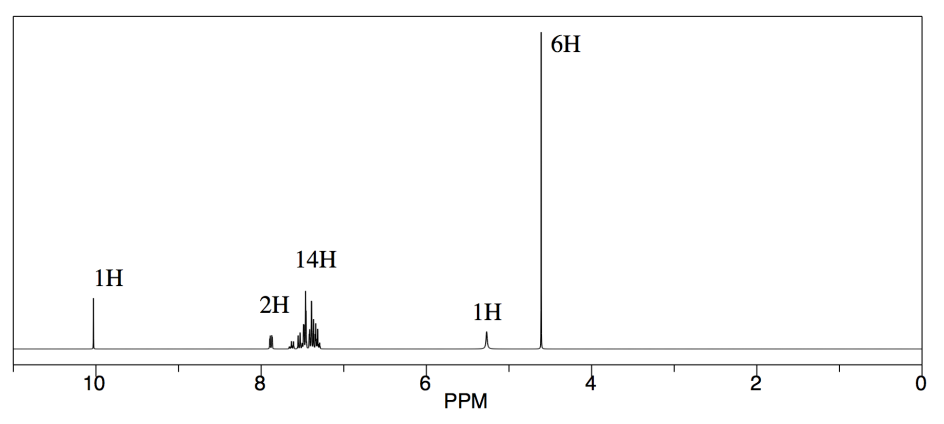

See the second student's spectrum.

See the third student's spectrum.

They were also able to determine that they had some leftover solvent in their samples by consulting a useful table of solvent impurities in NMR (which they found in Goldberg et. al., Organometallics 2010, 29, 2176-2179).

a)  What is the ratio of leftover solvent to ethyl propanoate in each sample?

b)  What is the percent of each sample that is leftover solvent?
