Structure in Chemistry

Stereochemistry

SC6. Optical Rotation and Enantiomeric Purity

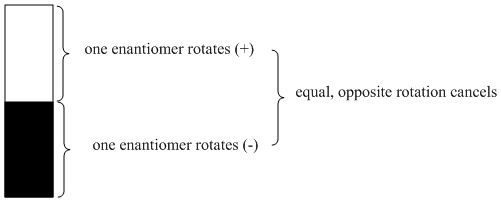

Figure SC6.1.  Optical rotation canceled out in a racemic mixture.

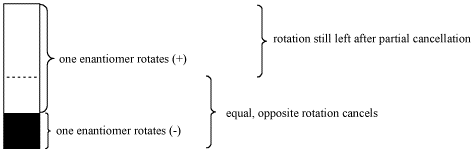

Figure SC6.2.  Optical rotation only partially canceled in a non-racemic mixture of enantiomers.

The "optical purity" is a comparison of the optical rotation of a pure sample of unknown stereochemistry versus the optical rotation of a sample of pure enantiomer.  It is expressed as a percentage.  If the sample only rotates plane-polarized light half as much as expected, the optical purity is 50%.

Optical purity also corresponds to "enantiomeric excess".  If the unknown sample rotates light 50% as much as a sample of pure enantiomer, it must contain 50% enantiomeric excess; the other 50% is a racemic mixture.  In other words, if the sample is 75% of one enantiomer and 25% of the other, 50% of the mixture will simply cancel out in terms of optical activity.  The remaining 50% will still exert optical activity, but only half as much as if the sample were 100% of that enantiomer.

These relationships could be expressed in formulae:

Optical purity (op) = [ (optical rotation of pure compound) / (optical rotation of pure enantiomer) ] x 100%

Enantiomeric excess (ee) = optical purity  (that is, these numbers are always the same, although they represent different things)

% major enantiomer = enantiomeric excess + [ (100 - enantiomeric excess) / 2 ] =  50 + (enantiomeric excess / 2)

% minor enantiomer = 100 - % major enantiomer

Problem SC6.1.

The (+) enantiomer of compound A has an optical rotation of 75o.  If a sample containing only compound A has an optical rotation of 50o, what is the composition of the sample?

Problem SC6.2.

 The (+) enantiomer of compound B has an optical rotation of 50o.  If a sample containing only B contains 10% of the (+) enantiomer and 90% of the (-) enantiomer, what is the optical rotation value?

Problem SC6.3.

The (-) enantiomer of compound C has an optical rotation of -60.  A sample of compound C is shown by chiral gas chromatography to contain only (-) C and no (+) C, but NMR analysis suggests the sample is about 50% ethyl acetate by weight.  Predict the measured optical rotation of a 1 g/mL solution in dichloromethane, measured in a 1 dm cell.

Problem SC6.4.

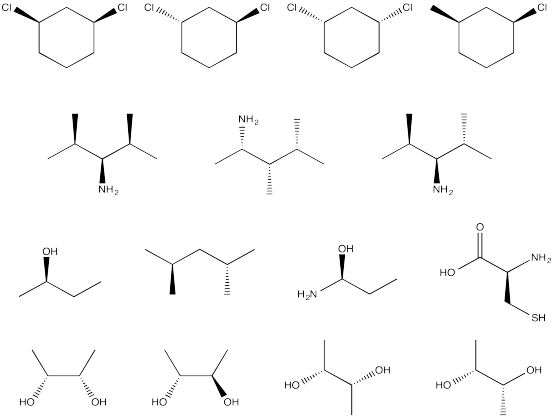

Which of the following compounds are optically active?
